IEC 62368-1 Clause Y.4.4 Cylindrical Weight For 69 KPa 1,35 KG Impact Hammer

Product Categories

Sinuo Testing Equipment Co. , Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: IEC 623681 Clause Y44 Cylindrical Weight For 69 KPa 135 KG Impact Hammer
Brand: Sinuo
Price: 1 USD

Brand Name : Sinuo

Model Number : N/A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 Sets Per Month

Delivery Time : 5~7 Days

Packaging Details : Standard Exporting Boxed

Applied standard : IEC 62368-1

Applied clause : Y.4.4 Figure Y.1

Test specimens : Gasket material

Material : Stainless steel

Contact Now

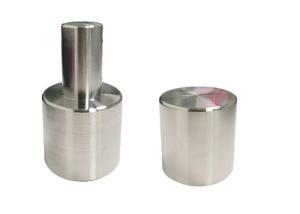

IEC 62368-1 Clause Y.4.4 Cylindrical Weight for 69 kPa 1,35 KG Impact Hammer

Product information:

This cylindrical weight is required by IEC 62368-1:2018 clause Y.4.4.

It is used to apply 69 kPa, it shall be placed on the middle portion of each specimen for a period of 2 h.

Material: stainless steel.

This 1.35 kg impact hammer is required by IEC 62368-1:2018 clause Y.4.4.

It is used to impact the specimen from 150 mm (manually).

The hammer head should be steel, 28.6 mm in diameter and have a flat striking surface, 25.4 mm in diameter with slightly rounded edges.

Technical Parameters:

Product Tags:

Clause Y.4.4 Cylindrical Weight
